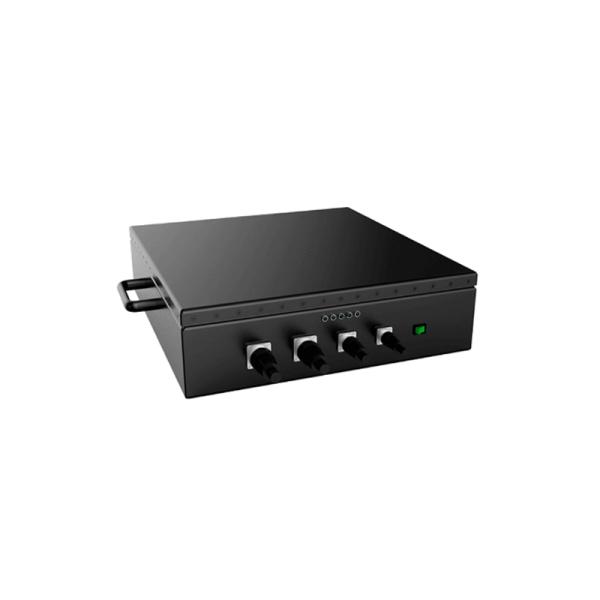

48V 150Ah AGV LiFePO4 Battery for Electric Vehicles

Brand Name : JHOTA

Place of Origin : China

MOQ : 5

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500pcs

Delivery Time : 20-30 days

Packaging Details : Carton

Product name : Communication Base Station Battery

Nominal Voltage : 48V

Nominal Capacity : 150Ah

Cycle Life : 2000 times

Warranty : 5 Years

Contact Now

Specification
Item Parameter
Nominal Voltage 48V
Rated Capacity Nominal Capacity: 150Ah, Minimum Capacity: 148Ah
Charging Voltage 54.8V
Charging Method Constant Current / Constant Voltage
Discharge Cut-off Voltage 34.5V
Rated Charging Current ≤50A
Maximum Continuous Charging Current ≤150A
Internal Resistance <100mΩ
Rated Discharge Current ≤50A
Maximum Continuous Discharge Current ≤150A (not exceeding 1 hour)
Overcharge Protection Voltage 3.65±0.05V (adjustable)
Over-discharge Protection Voltage 2.3±0.01V (adjustable)
Overcurrent Protection Discharge overcurrent value: ≥450A
Short Circuit Protection

Condition: External circuit short, Recovery:

Disconnect short circuit
Operating Temperature Range Charge: 0~55°C, Discharge: -20~55°C
Storage Temperature Range Less than 7 days: 20~65°C
Weight Approx. 38kg
Dimensions Customizable

Product Description:
Electric Vehicle Battery Pack 48v 150ah AGV Vehicle Battery Lifepo4 Battery
48V 150Ah AGV LiFePO4 Battery for Electric Vehicles
Advantages:
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
48V 150Ah AGV LiFePO4 Battery for Electric Vehicles
Application:

1.Goods-to-Person Systems: Powers AGVs that transport entire shelves of inventory to picking stations, requiring sustained high energy

for continuous movement and lifting.

2.Pallet Transport: Provides the necessary current surge for heavy-duty forklift AGVs to lift and move palletized goods (500kg - 1000kg+).

3. Sortation and Distribution: Fuels AGVs in parcel sorting hubs, enabling rapid acceleration, constant travel, and high throughput with

minimal charging downtime.

Our Factory
48V 150Ah AGV LiFePO4 Battery for Electric Vehicles
Packing&Shipping
48V 150Ah AGV LiFePO4 Battery for Electric Vehicles

Product Tags:

48V 150Ah AGV LiFePO4 battery



electric vehicle lithium battery



LiFePO4 battery for AGV

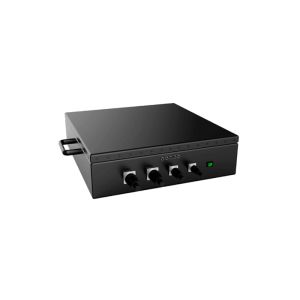

China 48V 150Ah AGV LiFePO4 Battery for Electric Vehicles wholesale

48V 150Ah AGV LiFePO4 Battery for Electric Vehicles Images
